Brand Name : Sunswell
Model Number : XGF16-16-5D
Certification : CE, ISO, SGS, UL
Place of Origin : China
MOQ : 1 set
Price : Negotiable
Payment Terms : T/T, L/C
Supply Ability : 100 sets per year
Delivery Time : 30 days
Packaging Details : Seaworthy Wooden Case
Product name : liquid filling machine
Function : 3-in-1
Filling heads : 16
Capping heads : 5
Suitable cap : Plastic Screw Cap
application : PET bottles water
Application : Beverage
Packaging material : Plastic
Factory Price PET Plastic Bottle Drinking Mineral Pure Water Production Line cost Filling Machine
1.The Sunswell mineral water production line use direct connection technology between air conveyor and in-feeding star-wheel to substitute in-feeding screw and conveyor to ease the process of bottle-size-changing.
2. Neck-hanging technology is applied in bottle transportation of the automatic water filling machine. Instead of traditional star-wheel, we use neck-hanging gripper to make bottle-size-changing easily , without equipment height adjustment ,only arch board and star-wheel such little nylon parts need to be changed.
3. Specially-designed rinsing grippers which are made of stainless steel are firm and endurable, with no contact to screw part of the bottle to prevent second pollution in this automatic water filling machine.
4. Rapid gravity filling valve with high flow makes filling faster with accurate liquid level and without any liquid loss.
5. Splint of star-wheel using twist descending way to simplify the process of bottle-size-changing.
Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
Rinsing machine adopts Sunswell original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.
Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° angle ensures to wash all side of the bottle, and can save the water.
Made of stainless steel of superior quality.
Equipped with bottle jam protection device.

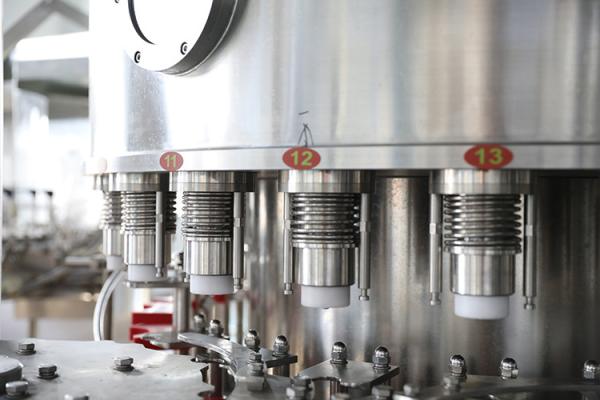

The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm (subject to bottle design). The filling valve material is SUS304. The filling system has liquid level automatic control. Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it start to fill. Bottle is conveying by the wheel in the filling part.
Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate. our screw capping has following feature.
Touch screen: THINGET
PLC program controller: Mitsubishi
Photoelectrical controller: Autonics
Proximity switch: Autonics
Other electrical components: Schneider
Pneumatic component: Airtac
Water pump: Nanfang
Main motor: Siemens
3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
Rinsing water consumption
7,000BPH (500ml); 3,500BPH (1.5L)
|Bottle height|| |
Plastic Screw Cap
PET Plastic Bottle Beverage Filling Machine , Beverage Filling Equipment Images
