Brand Name : Sunswell
Model Number : Depend on capacity
Certification : CE,ISO,SGS
Place of Origin : China
MOQ : 1 Unit
Price : USD 15000 per unit
Payment Terms : L/C, T/T
Supply Ability : 100 units per year
Delivery Time : 45 days
Packaging Details : Standard export wooden case
Condition : New
Automatic grade : Automatic
Driven type : Electric
Type : Filling Machine
Capacity : 3000-4000BPH
Processing : Filling Machine,Washing,capping
Packaging type : Bottles,Barrel,Cans
Voltage : 220V/380V,50Hz-60Hz
Power : By order
Material : 316L+304 Stainless Steel
Warranty : 1 Year
After-sales service provided : Engineers available to service machinery overseas,Online support,Video technical support,Field installation,Free spare parts

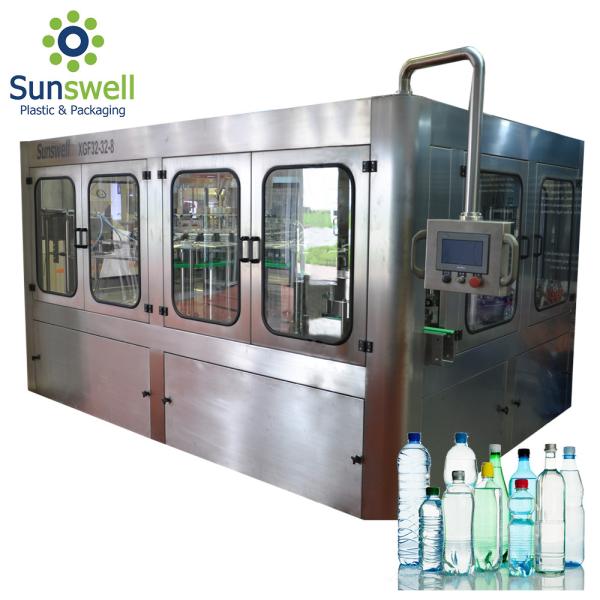

14 Heads Rotary Drinking Water Rinsing Filling Capping And Labeling Product Line
3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still pure
water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
The empty bottles can be turned over 180°along the conveying rail. The machine applies unique overturning bottle clamp,which is made of SUS304. The bottle clamp grips bottle at the neck position, avoiding bottle mouth contamination. The bottle clamp equipped with high efficient spray nozzle,which spray droplet with 15° angle ,ensures to wash all side of the bottle, and can save the water. The rinser is driven by driving system inside the machine frame via gear.
Filling valves and tank are made of stainless steel SUS304 Gravity filling. Ring shape tank with float ball level control. High speed and high accuracy filling valve with 150ml/s flowing speed Bottles go up and down in the function of cam through elevator to process filling Large flat bearing inside the machine frame,stable and reliable performance.
In the screw capping part,it installed photoelectrical control,when it has no cap,or the cap is bad,the machine will stop automatically. Magnetic constant torque capping head ensures stability and controls defective rate less than 0.2%. Cap dropping rail equips a group of photoelectrical switch for reverse cap detecting.When lack of cap,machine will stopp automatically. Bottle infeed detecting switch works with the pneumatic cylinder on cap starwheel to avoid feeding cap on no-bottle condition.
Bottle infeed by combination of infeed grippers.
Equipped with bottle jam protection device.
The material is super-corrosion stainless steel.
14 Heads Rotary Drinking Water Rinsing Filling Capping And Labeling Product Line Images
