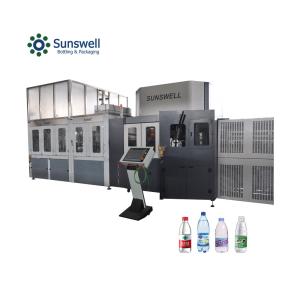

Sunswell Blow Water Bottles Filling Machines 2L Cap Combi Line

Brand Name : Sunswell

Model Number : BFC

Certification : ISO,CE

Place of Origin : Jiangsu,China

MOQ : 1 set

Price : USD 100,000 per set

Payment Terms : L/C, T/T

Supply Ability : 50 sets per year

Delivery Time : 45 days

Packaging Details : wood case & carton packaging

Machinery Capacity : 12000BPH, 20000BPH, 16000BPH, 48000BPH

Filling Material : Beer, Milk, Water, Juice

Bottles can be handled : 200ml-2L

Filling Accuracy : 3%

Product Name : combibloc blowing filling capping

Filling Principle : Gravity Filling

Key word : complete water bottling machine from a to z

Contact Now

Automatic vial bottling blow fill seal machine water filling machine

Sunswell is one of the leading Chinese able to manufacture high technology blowing-filling-capping machine in beverage business used in drinking water, juice, carbonated drinks area.


This combiblock consists of blowing unit, filling unit, and capping unit. With the synthetic application of electricity, mechanics, and pneumatics, and synchro controlled by servo system, Combi is applicable for the integrated control of several equipment and the whole production process.

It doesn't need empty bottle conveyor and rinsing part of the traditional filling machine, which saves a lot of room for the production plant, reduces water consumption from rinsing and energy consumption from fans used on empty bottle conveyor. It cuts a majority part of transit and guarantees the overall hygiene standard of the entire machine, which better helps end users increasing the overall production efficiency, lowering investment costs, saving energy consumption and maintenance costs.

Sunswell Blow Water Bottles Filling Machines 2L Cap Combi Line

Main Configuration:
1.The machine is made by aluminum alloy, carbon steel, stainless steel and alloy steel.
2.Bearings adopt domestic high quality bearings, imported bearings from Japan and Germany. The self-lubrication oil-free bearing adopts IGUS product.
3.High pressure air valves adopt product of NORGREN, EUGEN SEITZ, and SMC, etc.
4.High pressure exhaust mufflers adopt product of American and German companies.
5.Pneumatic parts adopts product of FESTO, SMC, NORGREN, etc.
6.Touch screen system adopt product of Schneider, SIEMENS, etc.
7.PLC adopts product of MITSUBISHI, SIEMENS, SCHNEIDER, etc.
8.Photoelectric sensor adopt product of TURCK, OMRON, BANNER, etc.
9.Contactor adopts product of SIEMENS, Schneider, etc.
10.Connecting terminals adopt product of PHOENIX, ABB, etc.

Product List

NO.
Model
Capacity
Remark
1
8-24-8
12000bph
500ml
2
12-32-10
18000bph
500ml
3
16-40-15
24000bph
500ml
4
20-60-18
36000bph
500ml

Detail Images

1.Heater
It adopts the matured worldwide-standardized way of preform feed-in and unscrambling, in which preforms go through preform elevator and are transmitted to preform unscrambler. Inside the preform unscrambler, preforms are automatically sorted and delivered by two inclined revolving cylinders with same speed, and the remaining ones will be picked by star wheel and sent back to preform hopper. The whole process of preform unscrambling is fully automatic and has high efficiency without preform scratches.

Sunswell Blow Water Bottles Filling Machines 2L Cap Combi Line Sunswell Blow Water Bottles Filling Machines 2L Cap Combi Line

2.Blowing unit
Special manipulator delivers heated preforms to moulds along certain cam curve. After stretch pre-blow, the preform will be blown to bottles by connecting high pressure compressed air. Special manipulator sends the finished bottle out along certain cam curve.

Sunswell Blow Water Bottles Filling Machines 2L Cap Combi Line Sunswell Blow Water Bottles Filling Machines 2L Cap Combi Line

3.Filling unit
The blow-made bottles are transported to filler via starwheel. After entering filler, the bottle is held by gripper of lifting cylinder and realizes up and down under effect of cam.The filler adopts gravity filling way. Bottle mouth rises to open filling valves and start filling. While product rises and plugs up air return hole, the filling will be finished. After filling, bottle mouth moves down and leaves the filling valve.

Sunswell Blow Water Bottles Filling Machines 2L Cap Combi Line

4.Capping unit
Bottles enter capper via transition starwheel. The anti-rotation knife of capper blocks bottle neck to keep bottle vertical and prevent rotation. Capping heads keep revolution and do rotation. Under effect of cam, the action of gripping cap, sleeve cap, screwing cap and discharging cap to finish the whole capping course. The finished bottles are conveyed via bottle-out starwheel onto bottle-out conveyor, and then are sent out of the combiblock. The whole machine adopts console sealing windows, beautiful and decent.

Sunswell Blow Water Bottles Filling Machines 2L Cap Combi Line
