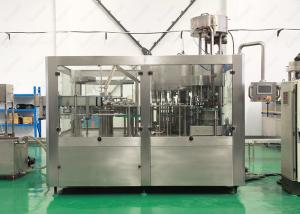

3 In 1 Mineral Water Packing Machine , Pure Drinking Water Bottle Filling Machine

Automatic 3 in 1 Liquid Plastic Product Mineral Pure Drinking Water Bottling Filling Packing Equipment

General introduction:

Sunswell Machinery water filling machine, using advanced 3-in-1 mineral water filling equipment .The mineral water bottling containing rinsing ,filling and capping ,these operation can be finished in one machine, the whole processing can achieve automation.The water filling machine applicable to polyester bottles and plastic bottles which filled with fruit juice, mineral water, purified water, plus the temperature control device can also be as the hot filling. The water filling method adopting a new type of micro-pressure filling, which making filling faster and more stable.

Application: still water, pure water, RO water, mineral water, sparkling water, alcoholic drinks, wine, etc.

Suitable for: PET bottles

Filling system: gravity filling

Production capacity: 5,000BPH-36,000BPH (500ml)

Technical features of water filling machine:

1. It is adopts that direct connection between air conveyor and inlet starwheel instead of screw and conveyor chains, which is easier for bottle changing.

2. There is no need to adjust the height of equipments through neck holding tech for bottle transporation. And what is only to change some spare parts.

3. High speed filling line is of clamp transferring technology. Bottle shapes are more varied, and the working table inside the machine is more laconic.

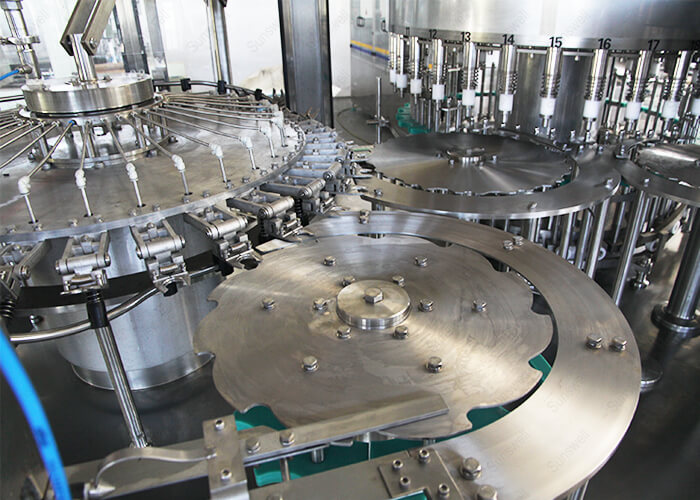

4. By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier.

5. Specially designed stainless steel bottle clamp does not contact the thread parts of the bottle neck, avoiding the second contamination.

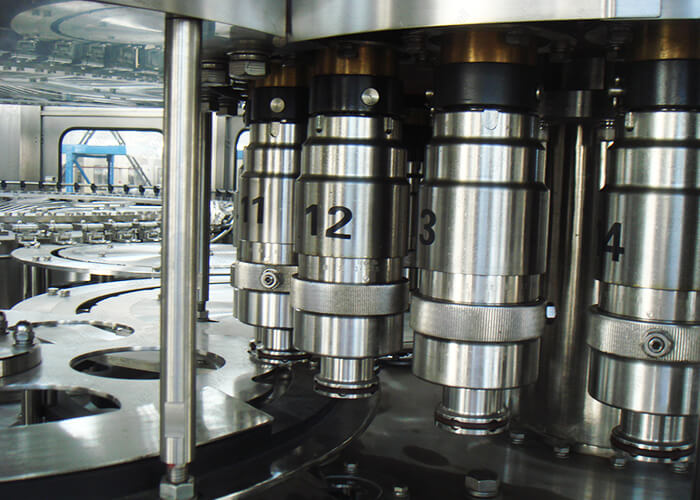

6. High speed and large flow filling valve assures the high filling speed and exact fluid level.

7. Spares contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard.

8. The bottle-out starwheel is of screwdown shape. When bottle size is changed, there is no need to adjust the transferring chain's height.

Equipment structure of water filling machine:

1. Rack

2. Rotary filler

3. Bottle infeed and outfeed system

4. Rotary rinser

5. Rotary capper

6. Control

Model&capacity:

water filling equipment

pet bottle filling machine

3 In 1 Mineral Water Packing Machine , Pure Drinking Water Bottle Filling Machine Images
