Success in water beverage production requires focus on maximum output and efficiency, with commitment to hygiene, food safety and cost optimisation. Whether you're producing still or sparkling water, our unmatched expertise helps you achieve more with extensive technical knowledge and packaging capabilities.
With over 10 years of experience in designing and implementing customized complete PET and glass line solutions for water,
sunswell can help you reach your production targets from water treatment,blowing, filling, labeling, packing, and palletizing up
to and including inspection and complete sanitizing.
Qucik Detail:
1.15,000BPH (500ml) Rated capacity
2. Gravity filling Method
3. For mineral water , pure water...
4. 3-in-1 filling monoblock, combined with rinsing, filling and capping
5. Full automatic
6. Applicable Bottle diameter 50 – 96mm, height 165 – 310mm

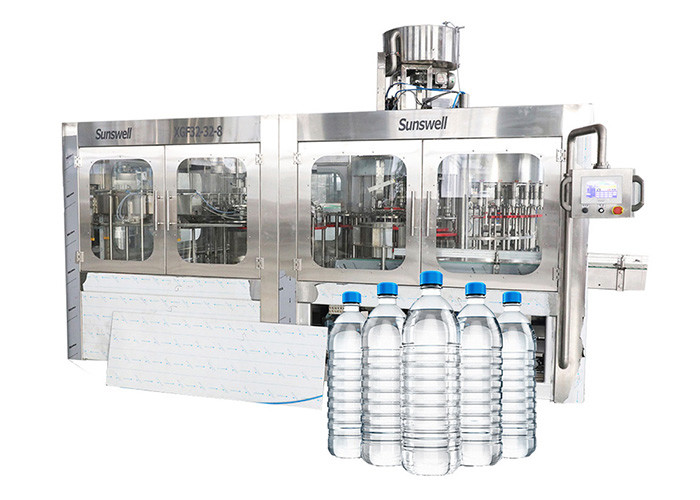

PET bottles, mineral water Gravity filling machine / line machinery, XGFH32-32-8
Specifications:
| Model | XGFH32-32-8 |
| Number of working positions | water rinser 32, filler 32, capper 8 |
| Rated capacity | 15,000BPH (500ml) |
| Filling method | Gravity filling |
| Applicable bottle | diameter 50 – 96mm, height 165 – 310mm |
| Air supply pressure | 0.7 MPa |
| Air consumption | 0.8M3/min |
| Rinsing water pressure | 0.2-0.25 MPa |
| Rinsing water consumption | 2.4 tons/hour |
| Main motor power | 4Kw |
| Installed power | 5.5Kw |
| Dimensions | 3380×2580×2700 (L×W×H) |
| Machine weight | 6000Kg |
3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still pure water and mineral water, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
Applications:
PET bottles with all volumes and shapes for still water, pure water, RO water, mineral water, sparkling water, etc.
Competitive Advantage:
Main features

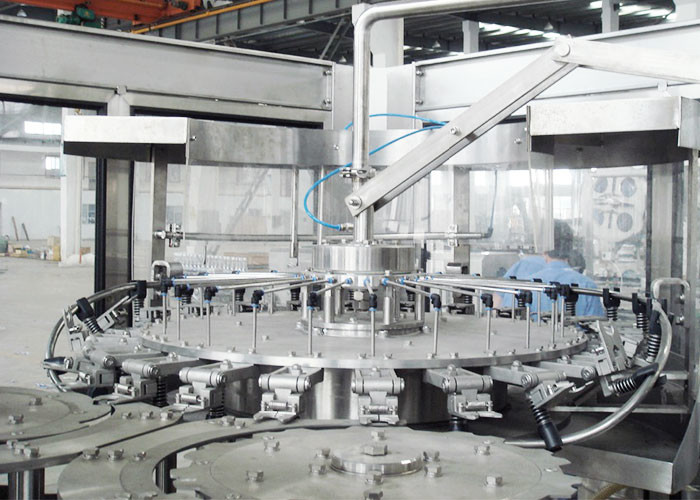

1. Rinser
Spring cramps are used in the bottle washing process. The empty bottles can be turned over 180° along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
Rinsing machine adopts Sunswell original overturn and double-opened bottle clip. Bottle clip lock the bottleneck, the material of bottle clip is SUS304, which is hygienic and durable.
Bottle clip equipped with efficient spray on nozzle. The extrusive droplet with 15° angle ensures to wash all side of the bottle, and can save the water.
Made of stainless steel of superior quality.
Equipped with bottle jam protection device.

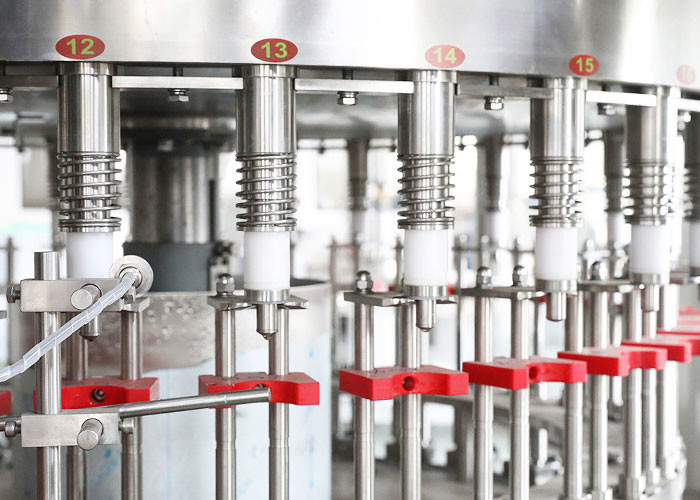

2. Filler
The design of filling structure is reasonable and hygiene dead angle, the run of equipment is stable, it can control the material from the bottleneck, the control accuracy is within ±2mm (subject to bottle design). The filling valve material is SUS304. The filling system has liquid level automatic control. Filling valve lift is controlled by the valve elevator, after filling valve contact the bottleneck, it start to fill. Bottle is conveying by the wheel in the filling part.

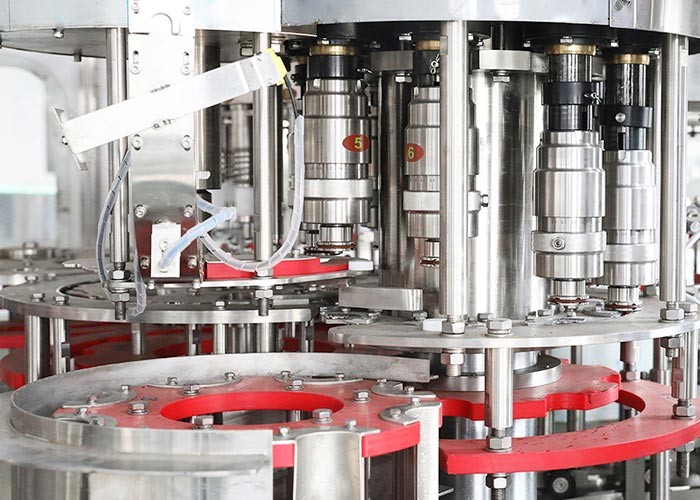

3. Capper
Screw capping machine is most precision part in the 3-1 machine, it has a big influence to the goods stability and defective rate. our screw capping has following feature.
Equipment structure
Base
Rotary rinser
Rotary filler
Rotary capper
Bottle infeed and outfeed system
Control
Main configuration
Touch screen: THINGET
PLC program controller: Mitsubishi
Inverter: Mitsubishi
Photoelectrical controller: Autonics
Proximity switch: Autonics
Other electrical components: Schneider
Pneumatic component: Airtac
Water pump: Nanfang
Main motor: Siemens
Bearing: Harbin
